Crimp System Tool for Crimping Insulated Heat-shrink Connectors/Splices



P/N 624 060-3 3 RT

InfoRequest quote and/or buying option available.

  • High-precision ratchet mechanism for complete crimps
  • Parallel crimping performance for even crimps
  • Interchangeable high-precision crimping die set
  • Capacity: 22-18 AWG, 16-14 AWG, 12-10 AWG
  • 1.2 metric tons pressure at crimping face, with minimal hand effort
  • Interchangeable locator for precision positioning of terminals
  • Ensures accurate, solderless, electrical connections
  • Customized die sets on request

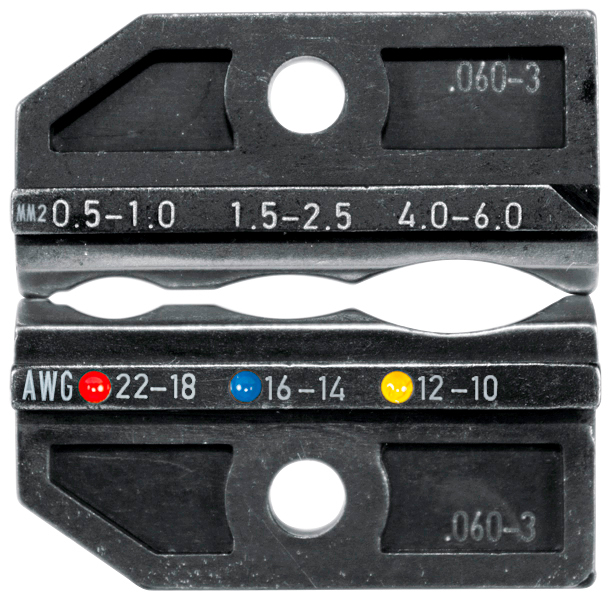

  Die Set 624 060-3 3 0 RT
P/N 624 060-3 3 RT 624 060-3 3 0 RT
Description

Crimp System Tool for crimping of insulated heat-shrink connectors/splices (Similar to AD-1522-1).

For example to use with terminals: 12089189, 12089190, 12089191, 88988379, 736 4107 997 00, 736 4107 998 00, 736 4107 999 00, 418-108, 418-107, 418-109, 19164-0066 and for many others with the wire ranges shown below.

Crimp Die Set for crimp system tools.
Handle Type Two-Component  N/A
Capacity 22-18 AWG | 16-14 AWG | 12-10 AWG
  Heat Shrink Splice ButtHeatshrinkable Sleeve Connector
Length 7 7/8" 1 5/16"
Weight 1.4 lbs. 0.2 lbs.
  Request a Quote! Request a Quote!
