P/N 624 339 3 0 RT
Die set for crimping of Tyco (183021, 183022, 183024, 282465, 282466)
Request quote and/or buying option available.
General Stamped and Formed Contacts
P/N 624 1663 3 01 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Tyco Type III (AWG 18 / 16 / 14).
Request quote and/or buying option available.
P/N 624 1579 3 01 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Sumitomo 064III, 064II, 1.0III, 2.3II.
Request quote and/or buying option available.
P/N 624 1539 3 012 RT
Complete box with 1 die set, 1 locator and 1 wire stop for crimping of Yazaki Kaizen 0.64 terminals 15491265 / 15491296.
Request quote and/or buying option available.
P/N 624 1729 3 01 RT
Request quote and/or buying option available.
Complete box with 1 die set, 1 locator, spare parts, and reference data sheet for crimping of TE MULTILOCK/040 III Unsealed Series and Sumitomo TS Series 1.0mm(040) Terminals.
P/N 624 688 3 0 RT
Complete box with 1 die set, spare parts and reference data sheet for crimping of Automatic Wire Pin, Cable Range 1.00 - 2.50 SQ-MM. For Terminal TE#926824 and Lear Clips# 25766 / 25767 / 25768 / 26077 / 25769 / 25770.
Request quote and/or buying option available.
P/N 624 674 3 023 RT
Crimp System Tool for crimping of modular plugs.
Request quote and/or buying option available.
P/N 624 329 61 12 RT
- Crimp System Tool for crimping of female APEX 2.8 Terminals.
- The tool comes with a locator for the correct positioning of the terminals in the tool.
P/N 624 324 61 12 RT
Crimp System Tool for crimping of male and female APEX 150 Terminals. The tool comes with a locator for the correct positioning of the terminlas in the tool.
P/N 624 397 3 012 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Female Sumitomo Terminal, Cable Range 0.35/0.5/0.8/1.0 SQ-MM.
Request quote and/or buying option available.
P/N 624 396 3 012 RT
Complete box with 1 die set, 1 locator, spare parts, and reference data sheet for crimping of Male Sumitomo Terminal, Cable Range 0.35/0.5/0.8/1.0 SQ-MM.
Request quote and/or buying option available.
P/N 625 50561 3 01 RT
Complete box with 1 die set and 1 locator for crimping of Female Sumitomo Terminal 8100-1553 and Male Sumitomo Terminal 8100-0522 unsealed, Cable Range 3/5/8 SQ-MM.
Request quote and/or buying option available.
P/N 624 1662 3 01 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Sumitomo 2.3 mm(090) Terminals, Cable Range AWG 16/14.
Request quote and/or buying option available.
P/N 624 1690 3 01 RT
Complete box with 1 die set and 1 locator for crimping of LKS 1.5 terminals, Cable Range 0.35/0.5/0.8 SQ-MM (AWG 22/20/18) to apply KOSTAL 22124472190040 and 22124472200040.
P/N 624 1657 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-6315-02 / 13789166, Cable Range 0.35/0.5 SQ-MM.
P/N 624 1358 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Amphenol terminals SS24M1T, SS24M1F, SS24M1G10, SS24M1G15, SS24M1G30, SP24M1T, SP24M1F, SP24M1G10, SP24M1G15 and SP24M1G30, Cable Range 24 - 26 AWG.
P/N 624 1619 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-4020, Cable Range AWG 20.
Request quote and/or buying option available.
P/N 624 1621 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-2095, Cable Range AWG 20.
P/N 624 1620 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7114-1257-02/7116-1257-02 | Sumitomo 1500-0181/8100-0544, Cable Range AWG 20.
Request quote and/or buying option available.
P/N 624 1656 3 01 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Sumitomo 0.64 US Unsealed Series Terminal (#8230-5223), Cable Range 0.5/0.75 SQ-MM.
P/N 630 003 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-5625, Cable Range 16 SQ-MM. This Die Set can be used in our APZ50 - Battery Powered Hydraulic Crimp Tool.
Request quote and/or buying option available.
P/N 624 1658 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-4112-02, Cable Range 1.5/2.5 SQ-MM.
P/N 624 529 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki Sealed YES/YESC Kaizen 2.8 x 0.8 terminals 7114-4150-02 / 7114-4151-02 / 7116-4150-02 / 7116-4151-02 / 7114-4152-02 / 7116-4152-02.
Request quote and/or buying option available.
P/N 624 1671 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop, spare parts and reference data sheet for crimping of Sumitomo HE Series 4.8mm (187) terminals, Cable Range AWG 22/20/14.
Request quote and/or buying option available.
P/N 624 1608 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-4416-08 (similar to Delphi 15326426), Cable Range 0.35/0.5 SQ-MM.
Request quote and/or buying option available.
P/N 624 1609 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7116-1471 / Sumitomo 8100-0461 & 8100-3655, Cable Range 18-20/16/18/20 AWG.
P/N 624 534 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop, spare parts for crimping of Yazaki terminals 7114-4102-02 (97BG-14421-ADA), 7114-4103-02 (97BG-14421-AEA), 7114-4102-08 (97BG-14421-AHA), 7114-4103-08 (97BG-14421-AJA), 7114- 4102-06 (EU5T-14421-TA), 7114-4103-06 (EU5T-14421-UA), 7116-4102-02, 7116-4103-02, 7116-4102-08, 7116-4103-08.
Request quote and/or buying option available.
P/N 624 1673 3 012 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Sumitomo TS90II-Series Terminal, Cable Range AWG 22/20/20-18/16.
Request quote and/or buying option available.
P/N 624 1614 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Bosch BTC terminal (1 928 498 807).
P/N624 1628 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch terminals (1060-12-0222 / 1062-12-0222). This Die Set and Locator can be used in our RENNSTEIG System Tools.
P/N 624 1627 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch/Amphenol terminals (1060-12-0166 / AT60-12-0166, 1060-12-0144 / AT60-12-0144, 1062-12-0166 / AT62-12-0166, 1062-12-0144 / AT62-12-0144). This Die Set and Locator can be used in our RENNSTEIG System Tools.
P/N 624 1629 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch/Amphenol terminals (1060-14-0122 / AT60-14-0122, 1060-14-0144 / AT60-14-0144, 1060-16-0122 / AT60-16-0122, 1060-16-0144 / AT60-16-0144, 1062-14-0122 / AT62-14-0122, 1062-14-0144 / AT62-14-0144, 1062-16-0122 / AT62-16-0122, 1062-16-0144 / AT62-16-0144). This Die Set and Locator can be used in our RENNSTEIG System Tools.
Request quote and/or buying option available.
P/N 624 1630 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch/Amphenol terminals (1060-16-0622 / AT60-16-0622, 1060-16-0644 / AT60-16-0644, 1062-16-0622 / AT62-16-0622, 1062-16-0644 / AT62-16-0644). This Die Set and Locator can be used in our RENNSTEIG System Tools.
Request quote and/or buying option available.
P/N 624 1632 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch terminals (1060-16-1222 / 1062-16-1222). This Die Set and Locator can be used in our RENNSTEIG System Tools.
P/N 624 1631 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Male and Female Deutsch/Amphenol terminals (1060-20-0122 / AT60-20-0122, 1060-20-0144 / AT60-20-0144, 1062-20-0122 / AT62-20-0122, 1062-20-0144 / AT62-20-0144. 1060-20-0177, 1062-20-0177).
P/N 624 1622 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of MFX-3958 terminals. For terminals: SP20W1F / SP24W1F / SP28W1F / SS20W1F / SS24W1F / SS28W1F.
Request quote and/or buying option available.
P/N 624 1623 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of MFX-3954 terminals. For terminals: SP14M1F / SP16M1F / SP20M1F / SS14M1F / SS16M1F / SS20M1F.
Request quote and/or buying option available.

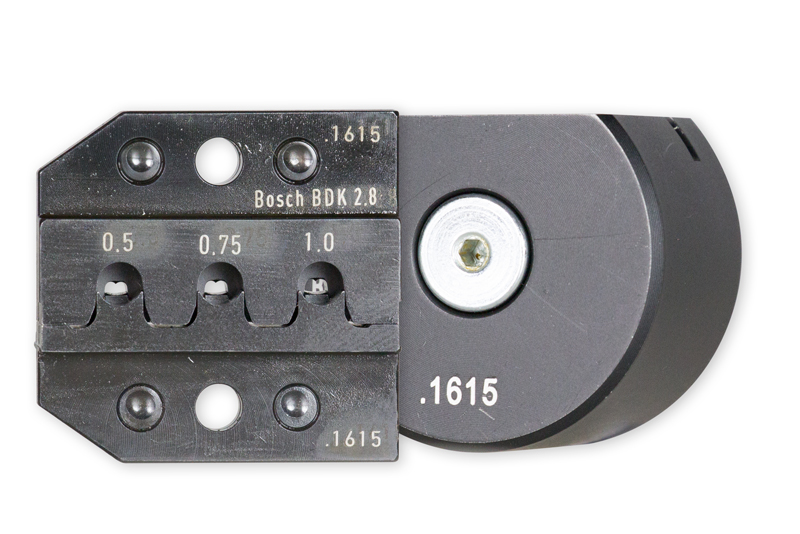

P/N 624 1615 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop and spare parts for crimping of Bosch BDK / BSK terminals (1 928 498 054, 1 928 498 056, 1 928 498 058).
Request quote and/or buying option available.

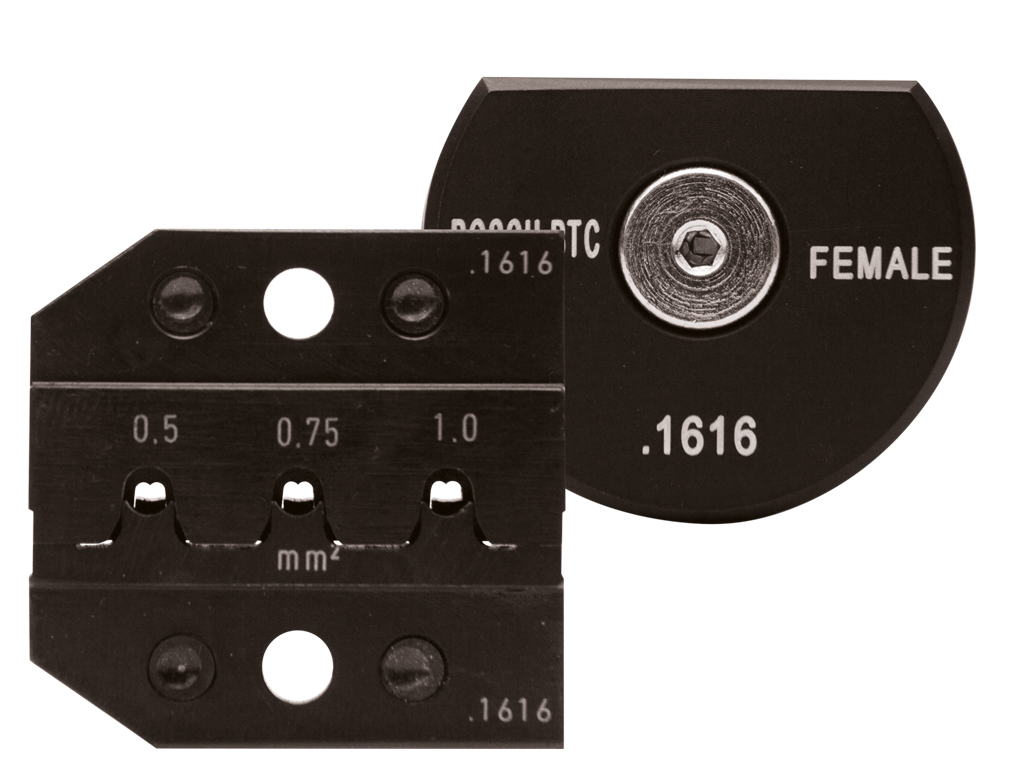

P/N 624 1616 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Bosch BTC terminal (1 928 498 805).

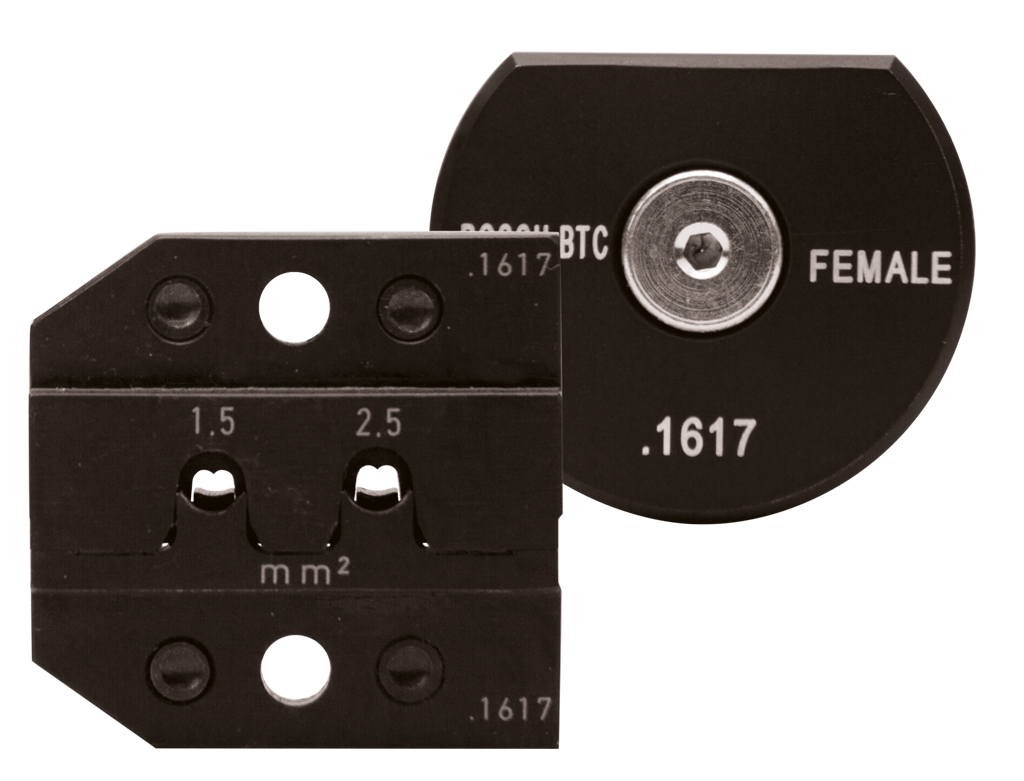

P/N 624 1617 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop, and spare parts for crimping of Bosch BTC terminal (1 928 498 806).
P/N 624 1624 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of MFX-3962 terminals. For terminals: SP12A1T / SS12A1T.
P/N 624 1634 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop and spare parts for crimping of Furukawa RFW-M-125/RFW-F-125 terminals with seal.
Request quote and/or buying option available.
P/N 624 1635 3 01 RT
Complete box with 1 die set, 1 locator, and spare parts for crimping of Furukawa QLW-M-300/QLW-F-300 terminals with seal.
Request quote and/or buying option available.
P/N 624 1655 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Delphi/Yazaki APEX 2.8 terminal (1.5/2.5 SQ-MM).
Complete crimping solution for APEX 2.8 mm Series Terminals. These Crimp Die Sets and Locators can be used in our Crimp System Tools.
Request quote and/or buying option available.
P/N 624 1039 3 0 RT
Complete box with 1 die set and spare parts for crimping of Bosch BDK (1 928 498 055, 1 928 498 057, 1 928 498 059), BMK 0.6 (1 928 498 015/1 928 498 002/1 928 498 005/1 928 498 013/1 928 498 004/1 928 498 000) and BMK 0.6 terminals (1 928 498 016/1 928 498 014/1 928 498 003/1 928 498 001).
Request quote and/or buying option available.
P/N 624 053 3
Crimp System Tool for crimping of rolled contacts
Complete Rennsteig crimping solution for Bosch Matrix 1.2 Terminals. These Rennsteig Crimp Die Sets and Locators can be used in our Crimp System Tools.
Request quote and/or buying option available.
Crimping Die Sets, Locators and Wire Stops for crimping of Kostal MLK 1.2 terminals (22140614190000 / 22140614230 / 22140614200000 / 22124614240)
Request quote and/or buying option available.
Crimping Die Sets, Locators and Wire Stops for crimping of Kostal MLK 1.2 terminals (22124492680042 / 32124734000000 / 32124734010000)
Crimping Die Sets, Locators and Wire Stops for crimping of Kostal SLK 2.8 terminals (22124449720 / 22124499540 / 22124472980050 / 22140472960050 / 22140472970050 / 22140492050050 / 2140492060050 / 22140492070050 / 22140499720030 / 22124499540)
Request quote and/or buying option available.
P/N 624 535 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminals 7114-4100-02, 7114-4100-08, 7114-4101-02, 7114-4101-08, 7116-4100-02, 7116-4780-02, 7116-4100-08, 7116-4101-02, 7116-4781-02, 7116-4101-08.
Request quote and/or buying option available.

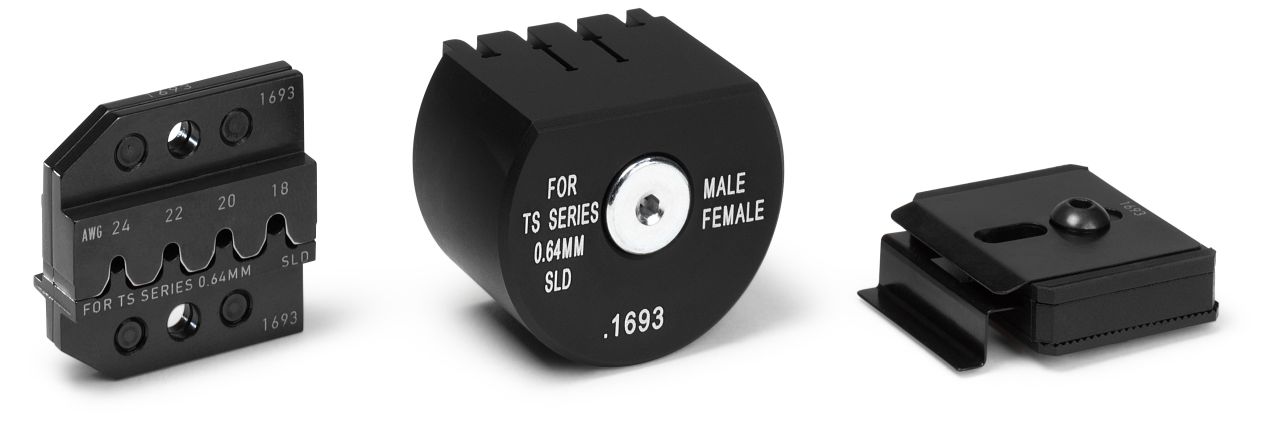

P/N 624 1693 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop, spare parts and reference data sheet for crimping of Sumitomo TS Sealed Series 0.64 mm (025) terminals, Cable Range AWG 24/22/20/18.
Request quote and/or buying option available.
P/N 624 1685 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop, spare parts and reference data sheet for crimping of Sumitomo TS Series 0.64 mm (025) unsealed terminals, Cable Range AWG 26/22/20.
Request quote and/or buying option available.
P/N 624 1686 3 012 RT
Complete box with 1 die set, 1 locator, 1 wire stop, spare parts and reference data sheet for crimping of Sumitomo TS Series 1.5 mm (060) terminals, Cable Range AWG 20/18/14.
Request quote and/or buying option available.
P/N 624 1695 3 01 RT
Crimp System tool (1x Tool frame, 1x Crimping Die Set, 1x Locator) for crimping of Amphenol/FCI terminal 10089855-111A (Connector 10089865-101LF) for AWG 14/12/10 | 2.5 / 4.0 / 6.0 MM2 wires. This terminal is used in the Pwr Profile+®, Power Connectors, straight cable connector assembly kit.
P/N 624 1353 3 01 RT
Complete box with 1 die set, 1 locator and spare parts for crimping of Bosch BMK 0.6 (1 928 498 006).
Request quote and/or buying option available.
P/N 624 1354 3 01 RT
Complete box with 1 die set and spare parts for crimping of Bosch BMK 1.5 (1 928 498 007).
P/N 624 1713 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Sumitomo HX/HV/HVG 1.0mm (040).
- Cable Range: AWG 22/20/18/16
- Terminals: 8100-3067 / 8100-3068 / 8100-3177 / 8100-3178
Request quote and/or buying option available.
P/N 624 479 3 01 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of ITT APK Sealed terminals, Cable Range AWG 16-18 / 14-16 / 12-14.
P/N 624 1328 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of JAE M34S75C4F1, M34S75C4F2 / IL-AG5-C1-7500, IL-AG5-PC1-5000 terminals, Cable Range AWG 22 / 20 / 18 / 22-20 | 0.3 / 0.5 / 0.85 / 0.3 - 0.5 SQ-MM.
Request quote and/or buying option available.
P/N 624 1623 3 1 RT
Complete Rennsteig Crimp System Tool (Tool frame, 1 die set, and 1 locator) for crimping of MFX-3954 terminals. For terminals: SP14M1F / SP16M1F / SP20M1F / SS14M1F / SS16M1F / SS20M1F.
P/N 624 1622 3 1 RT
Complete Rennsteig Crimp System Tool (Tool frame, 1 die set, and 1 locator) for crimping of MFX-3958 terminals. For terminals: SP20W1F / SP24W1F / SP28W1F / SS20W1F / SS24W1F / SS28W1F.
P/N 624 1631 3 1 RT
Complete Rennsteig Crimp System Tool (Tool frame, 1 die set, and 1 locator) for crimping of Male and Female Deutsch/Amphenol terminals (1060-20-0122 / AT60-20-0122, 1060-20-0144 / AT60-20-0144, 1062-20-0122 / AT62-20-0122, 1062-20-0144 / AT62-20-0144. 1060-20-0177, 1062-20-0177).
P/N 624 1624 3 1 RT
Complete Rennsteig Crimp System Tool (Tool frame, 1 die set, and 1 locator) for crimping of MFX-3962 terminals. For terminals: SP12A1T / SS12A1T.
P/N 624 1629 3 1 RT
Complete Rennsteig Crimp System Tool (Tool frame, 1 die set, and 1 locator) for crimping of Male and Female Deutsch/Amphenol terminals (1060-14-0122 / AT60-14-0122, 1060-14-0144 / AT60-14-0144, 1060-16-0122 / AT60-16-0122, 1060-16-0144 / AT60-16-0144, 1062-14-0122 / AT62-14-0122, 1062-14-0144 / AT62-14-0144, 1062-16-0122 / AT62-16-0122, 1062-16-0144 / AT62-16-0144). This Die Set and Locator can be used in our RENNSTEIG System Tools.
P/N 624 1048 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of MX80 Series terminals, Cable Range AWG 22 / 20 / 18 | 0.35 / 0.5 / 0.75 / 1.0 SQ-MM.
P/N 624 1049 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of MX77 Series terminals, Cable Range AWG 26 / 24 / 22 | 0.13 / 0.22 / 0.35 SQ-MM.

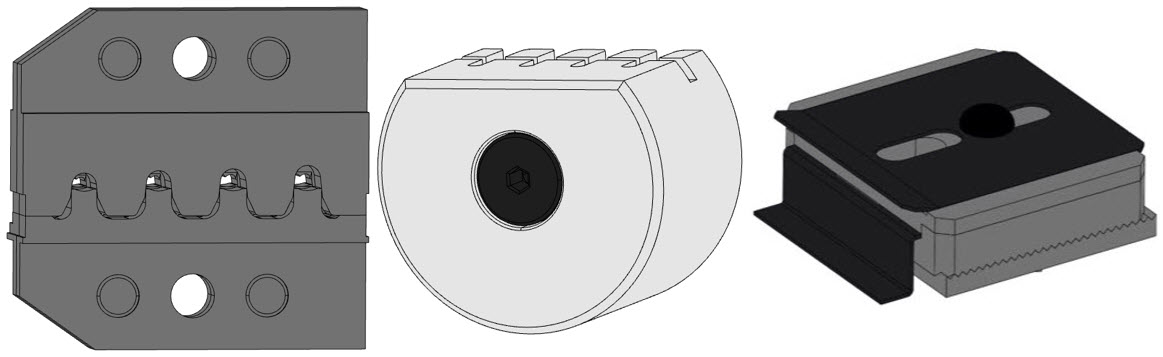

P/N 624 324 3 012 RT
Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of male and femal APEX 150 terminals, Cable Range AWG 22 - 16.
P/N 624 1726 3 01 RT
Complete box with 1 die set, 1 locator, spare parts, and reference data sheet for crimping of Sumitomo 2.3mm(090) MT Sealed Series Terminals, Cable Range AWG 14 | 2.0 SQ-MM.
P/N 624 660 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki Yazaki 62 Connectors SLD, AWG 22 / 20 / 18.
P/N 624 661 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki Yazaki 62 Connectors USLD, AWG 22 / 20 / 18.
P/N Please click here.
Request quote and/or buying option available.
- Crimping tool for thick-walled connectors (with and without seal)
- Interchangeable crimping dies, locators, and positioning guides for a wide range of contacts
P/N 624 1694 3 01 RT
Complete box with 1 die set, 1 locator, spare parts for crimping of Yazaki terminal 7114-4415-02, 7116-4415-02, 7114-4416-02, 7116-4416-02, 7114-4417-02, 7116-4417-02, Cable Range 0.22 / 0.35 / 0.5 / 0.75 SQ-MM.
