400 Series Die Assemblies

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-4NIT-B.230

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .230
  • GO .225 / NOGO .232
  • Size 2

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-10N.100

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .100
  • GO .095 / NOGO .102
  • Size 10

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-FER.060

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • The Die Assembly already includes the pressed-in Locator
  • For Wire Ferrules
  • Closure .060
  • GO .055 / NOGO .062
  • Size 16

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-FER.048

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • The Die Assembly already includes the pressed-in Locator
  • For Wire Ferrules
  • Closure .048
  • GO .043 / NOGO .050
  • Size 18

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-FER.040

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • The Die Assembly already includes the pressed-in Locator
  • For Wire Ferrules
  • Closure .040
  • GO .035 / NOGO .042
  • Size 20-22

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-10N.110

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .110
  • GO .105 / NOGO .112
  • Size 10

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-10N.105

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .105
  • GO .100 / NOGO .107
  • Size 10

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-12-18N.084

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .084
  • GO .079 / NOGO .086
  • Size 12-18

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

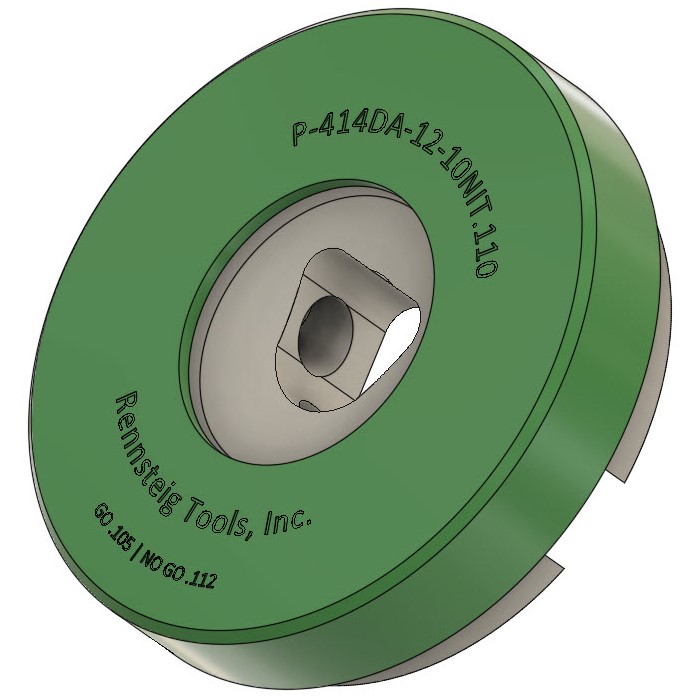

P/N P-414DA-12-10NIT.110

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .110
  • GO .105 / NOGO .112
  • Size 12-10

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-12-10IT.100

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .100
  • GO .95 / NOGO .102
  • Size 12-10

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-6NIT.180

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .180
  • GO .175 / NOGO .182
  • Size 6

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-1/0NIT.380

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .380
  • GO .375 / NOGO .382
  • Size 1/0

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-8NIT-B.150

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .150
  • GO .145 / NOGO .152
  • Size 8

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-4IT.275

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .275
  • GO .270 / NOGO .277
  • Size 4

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-2NIT-B.280

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .280
  • GO .275 / NOGO .282
  • Size 2

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-8NIT.156

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .156
  • GO .151 / NOGO .158
  • Size 8

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-6NIT-B.170

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .170
  • GO .165 / NOGO .172
  • Size 6

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-1N.290

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .290
  • GO .285 / NOGO .292
  • Size 1

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-2N.250

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .250
  • GO .245 / NOGO .252
  • Size 2

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-2/0N.356

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .356
  • GO .351 / NOGO .358
  • Size 2/0

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-4/0N-1.430

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .430
  • GO .425 / NOGO .432
  • Size 4/0

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-4NIT.270

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .270
  • GO .265 / NOGO .272
  • Size 4

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-22N.032

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .032
  • GO .027 / NOGO .034
  • Size 22

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-8IT-B.166

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .166
  • GO .161 / NOGO .168
  • Size 8

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-8IT.186

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .186
  • GO .181 / NOGO .188
  • Size 8

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-4SPEC.175

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .175
  • GO .170 / NOGO .177
  • Size 4

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-8SPEC.134

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .134
  • GO .129 / NOGO .136
  • Size 8

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-20N.038

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .038
  • GO .033 / NOGO .040
  • Size 20

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-10N.090

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .090
  • GO .085 / NOGO .092
  • Size 10

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-4N.200

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .200
  • GO .195 / NOGO .202
  • Size 4

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-6N.176

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .176
  • GO .171 / NOGO .178
  • Size 6

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-16N.060

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .060
  • GO .055 / NOGO .062
  • Size 16

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-12N.068

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .068
  • GO .063 / NOGO .070
  • Size 12

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-1/0N.330

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .330
  • GO .325 / NOGO .332
  • Size 1/0

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-8N.134

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .134
  • GO .129 / NOGO .136
  • Size 8

Image is a representation. Die Set, Locator ad Wire Stop/Contact Support can vary.

P/N P-414DA-16N.048

InfoRequest quote and/or buying option available.

The die set will work for the below mentioned applications but is not limited to those.

  • Die Assembly for 400 Series Multi-Indent Crimping Tool
  • For machined Pin & Socket Contacts
  • Closure .048
  • GO .043 / NOGO .050
  • Size 16

Main Menu
